The SR-9AM head fixation system ensures precise measurements with high reproducibility. By enabling instant re-fixation in the exact same position, it allows for stable, non-anesthetized chronic and observational experiments while minimizing restraint stress. Customization for user-made chambers is also available.
* The SR-9AM is intended for users who already own a stereotaxic instrument. If you do not have a base plate, please obtain the SR-9M-HT.
* Also available is the SR-10AR designed exclusively for rats.
* The chamber frame is customizable to your own application. Please contact us for details.
 |
By bonding the chamber frame onto the head of a mouse, repeated fixations in the same position in an unanesthetized state have become possible. Once the chamber frame is fixed on the head, without the need for anesthetization, the mouse can be stereotaxically fixed without using the mouth/nose clamp or ear bars, enabling the SR-9AM to be used for visual and/or auditory experiments. |
| There are three types: the frame-type CF-10 and the plate-type CP-1 and CP-2. |
The color will be updated to black due to the new surface treatment. This change will make it easier to clean the surface and remove dirt.
This change will be applied once the current stock is finished. The color cannot be chosen when placing an order.
* Stereotaxic micromanipulators such as SMM series, as well as the base plate (SR-5B or SR-6B) are sold separately.
 |
 |

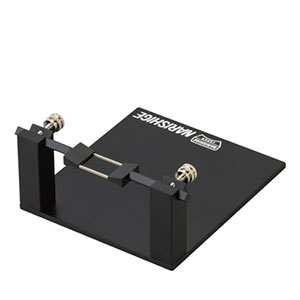

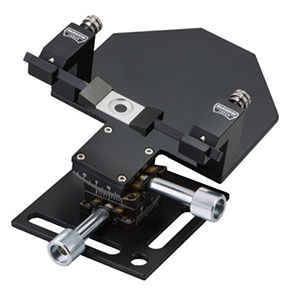

| Once the SR-9AM is synchronized and the chamber frame is attached, chronic and observational experiments can be conducted in combination with products such as the MAG-1 and MAG-2. | |
| Accessories included | EB-3B Ear Bars for Mice (in a pair) EB-6 Auxiliary Ear Bar for Mice CF-10 Chamber Frame × 5pcs |
|---|---|
| Dimensions/Weight | W300 × D120 × H80 ~ 96mm, 1.6kg |

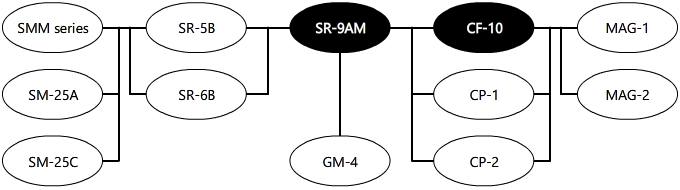

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
