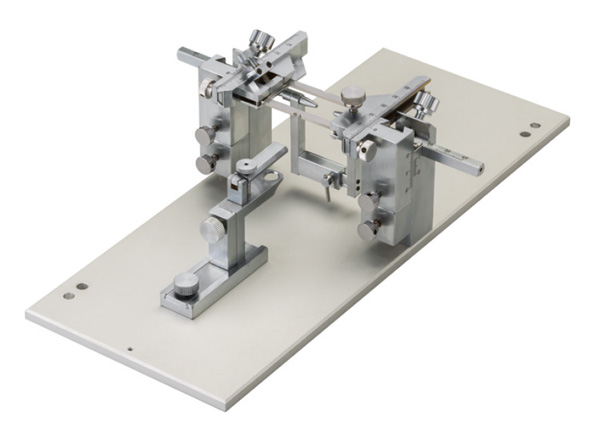

The SR-10AR head fixation system ensures precise measurements with high reproducibility. By enabling instant re-fixation in the exact same position, it allows for stable, non-anesthetized chronic experiments while minimizing restraint stress. Customization for user-made chambers is also available.
* For stereotaxic use, the optional SR-5B or SR-6B (including baseplate with AP bar) is required.
* While compatible with our stereotaxic instruments (the SR series), attachment may be restricted or not recommended for older models or specific baseplate conditions; please contact us for details.
 |
By bonding the chamber frame onto the head of a rat, repeated fixations in the same position in an unanesthetized state have become possible. Once the chamber frame is fixed on the head, without the need for anesthetization, the rat can be stereotaxically fixed without using the mouth/nose clamp or ear bars, enabling the SR-10AR to be used for visual and/or auditory experiments. |
| There are two types of chamber frames: CFR-1 and CFR-2. |
The color will be updated to black due to the new surface treatment. This change will make it easier to clean the surface and remove dirt.
This change will be applied once the current stock is finished. The color cannot be chosen when placing an order.
* Stereotaxic micromanipulators such as SMM series, as well as the base plate (SR-5B or SR-6B) are sold separately.
| Accessories included | EB-3A Ear Bars for Rats (in a pair) EB-4N Auxiliary Ear Bar for Rats CFR-1 Chamber Frame (5 pcs) |
|---|---|
| Dimensions/Weight | W300mm × D200mm × H85 ~ 106mm, 1.6kg |

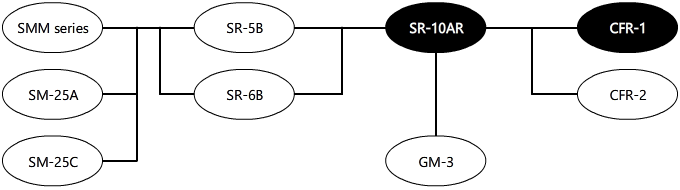

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
