MAG-3

Head Holding Device (with Angle Adjuster / for Mice)

Allows approach to the temporal region of the head under a microscope.

After bonding a chamber onto the head of a mouse on the SR-9M-HT Stereotaxic Instruments, the MAG-3 can be transferred and placed under a microscope or other experimental instrument for performing observations/experiments. The MAG-3 can be placed under a stereomicroscope and is most suitable for in vivo observation/imaging experiments. Equipped with angle adjusters for obtaining deeper images. Although larger in size than the MAG-2, it can be inclined at a steeper angle which is useful for making an approach to the temporal region of the head.

MAG-3

* Attachable chambers: CF-10, CP-1, CP-2


MAG-3


Head Holding Device (with Angle Adjuster / for Mice)

Angle of inclination


Longitudinal inclination (±15°)



Lateral inclination (±20°)

MAG-3 + MAG-A Setting example

If the experiment will be performed with awake mice, use this product with MAG-A.

MAG-A


Specification

Accessories included CP-1 Chamber Plate (one each)
CP-2 Chamber Plate (one each)
Vinyl Sheet
Dimensions/Weight W108mm × D152mm × H109 ~ 130mm, 1.7kg
Maximum angle of inclination Longitudinal ±15°
Lateral ±20°
Load-bearing Capacity 2kg

* The chamber frame is customizable to your own application. Please contact us for details.

* The CFR-1 / CFR-2 Chamber Frame (for rats) can NOT be attached.

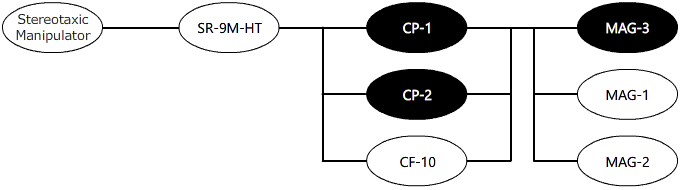

System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
