IMS-3

Stereotaxic Microinjector

For injections into a regional target with a manual injector.

Attached to the stereotaxic micromanipulator SM-15R/L, this microinjector is for performing injections into the animal brain. The injection volume is adjusted with ø5 ~ 10mm different types of syringes. This model allows direct operation of the syringe plunger. It is suitable for a large quantity of injection into a regional target.

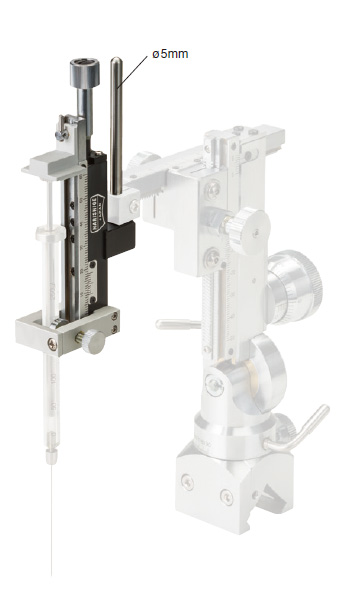

IMS-3

* Syringes are required separately.


Specification

Acceptable syringe ø5 - ø10mm
Movement range Fine 50mm
Full rotation of knob: 500µm
Dimensions/Weight W50 × D30 × H120mm, 115g

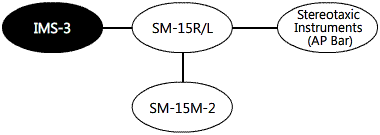

System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
