IM-401

New ProductCompliance with CE standards (Legend Symbols)

Electric Microinjector

Touch-panel-controlled electric microinjector: Ideal for DNA injection

This electric microinjector allows for the precise injection of small liquid volumes. It is ideal for DNA/RNA injection, gene transfer, and other injection applications. The intuitive touch panel makes it easy to adjust the injection pressure, time, and balance. Injections can be performed using either the panel button or a foot switch.

IM-401

Touch panel control at your fingertips!


IM-401

Electric Microinjector

Application

  1. Gene delivery(CRISPR/Cas9, DNA/RNA, etc)
  2. Sample solution injection
  3. Fluorescent dye injection
  4. Various other liquids injection, and more

Improved Balance pressure control

The IM-401's balance pressure can be adjusted in 0.1kPa increments from 1 to 100kPa. This improved feature enables stable pressure control with micropipettes, including those with relatively thick tip diameters.

High precision pressure control

The injection volume is now more stable due to reduced pressure fluctuations during the return to Balance pressure after injection.


Image of pressure controls: Previous model Image of pressure controls: IM-401

IM-401

Electric Microinjector

Added system switch

A new system switch has been added to the back of the touch panel display control unit for easy adjustment. Simply press the button to start (ON) or stop (SUSPEND) the system.

Comfortable operation with footswitch

It features a dedicated foot switch for administering injections. This allows users to operate the manipulators hands-free before injections.


IM-401

Electric Microinjector

Compatible with various pipettes

These optional attachments are sold separately and allow users to replace the cap on the included injection holder with different types of pipettes.

Third-party screw-type Tip
*Please contact us.
HIC-1.2 (For 1.2 mm OD pipette) HIC-1.5 (For 1.5 mm OD pipette)

External pressure source

* The IM-401 requires an external pressure source to operate.

* External pressure sources(gas tanks equipped with a regulator or the compressor)are sold separately.

* The tube fitting for the gas input hose is "KQ2H06-02AS" by SMC. When connecting a regulator or compressor, ensure that the connections are made appropriately according to this fitting.



IM-401

Electric Microinjector

Specification

Accessories included Connecting cable for display control unit (1.5m)
Injection holder (HI-9)
Cleaning rod
Tubing (CT-4, ø2mm × 1.2m)
Gas input hose (ø6mm × 2m, ø6mm × 1m)
Pipe fitting for gas input hose
T-joint with a pressure relief valve
Foot switch (connecting cable 2.9m)
Power cord (1.5m)
Silicone rubber gasket (HI01PK01)
Gas input/output Gas input port for ø6mm diameter hose
Gas output port for ø2mm diameter tube
Supply pressure 0.6 ~ 0.7MPa
Gas pressure Injection/Balance pressure 0.001 ~ 0.5MPa
Flushing pressure 0.6 ~ 0.7MPa
Power supply AC100V ~ AC240V±10%, 50/60Hz
Power consumption 15W
Fuse rating T1A/250V (IEC60127-2 sheet3)
Dimensions/Weight Control box W120 × D264 × H220mm, 2.99kg
Display control unit W130 × D55 × H155mm, 0.79kg

IM-401

Electric Microinjector

Consumables

Model Product Description
HI01PK01 Silicone Rubber Gasket For 2.5mm (10 pcs)

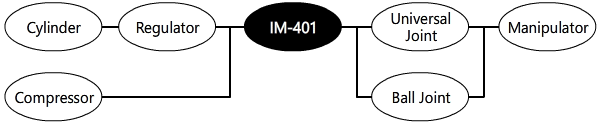

System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
