- U-3FC : Micromanipulator
- Specification
- Associated Information

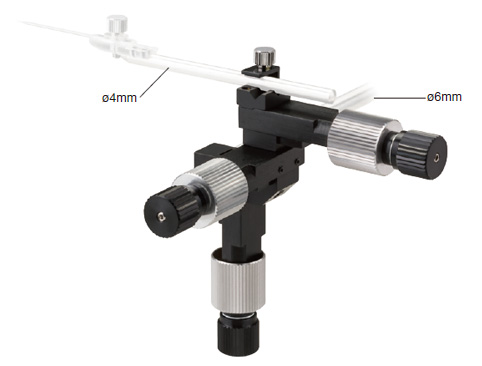

This three-dimensional coarse and fine micromanipulator has a wide range of applicability and features a coaxial coarse and fine movement mechanism on each axis, and a slim, space-saving design. A ø6mm bar (URC-1) comes with the manipulator. Magnetic stand is sold separately.
* Magnetic stands are optionally available. Choose either USM-6 or USM-10.
* To mount onto USM-6, an X-Block (UX-6-6) is also required separately.
* To mount onto USM-10, an X-Block (UX-6-10) is also required separately.
| Movement Range | Coarse | X/Y/Z Each 9mm |
|---|---|---|
| Fine | X/Y/Z Each 5mm Full rotation of knob 500µm |
|
| Dimensions/Weight | W70 × D55 × H83mm, 99g | |
To read PDF files, you need to have the Adobe Reader installed on your computer.
You can download it free of charge from : http://www.adobe.com/products/acrobat/readstep2.html
Specifications are subject to change without notice.
