UST-3A

Joint Attachment

Convenient replacement of electrode for EMM-3NV.

The UST-3A joint attachment is designed for the holder mount of the solid universal joint (UST-3) to be conveniently situated toward the front. It is much easier to replace electrodes of the micromanipulator (EMM-3NV / NMN-21). Two-point support of its pivot and fixing section enables the joint attachment to be kept movable yet highly stable.

UST-3A

* The AP-13-3 / AP-14A Patch Clamp Headstage Holders (sold separately) are mountable.



OPEN


Specification

Accessories included Socket Cap Screw × 2
Hex Wrench
Dimensions/Weight W70 × D42 × H35mm, 55g

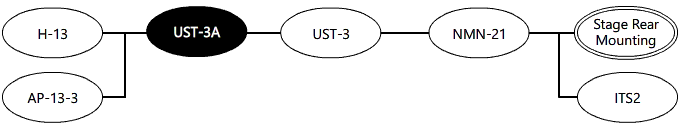

System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
