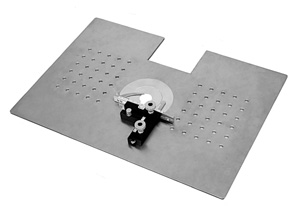

TSP-4

Stage Plate

Made of special stainless steel, this large-sized stage is magnetic and rust-resistant. When used in conjunction with double-ended magnetic stands, it serves as a stereomicroscope stage. This large-size stage permits the installation of a number of manipulators and provides wide working space. Manipulators can be installed on the stage through the use of magnetic stands or directly through mounting holes (ø7mm) in the stage.

TSP-4

* To set up the TSP-4 Stage Plate, the TSG-3 / TSG-4 Double Magnetic Stand and the TSP-1 Base Plate are required separately.

Specification

Dimensions	W465 × D330 × T4mm
Weight	4kg
Bore pitch	25mm
Bore diameter	ø7mm

Specifications are subject to change without notice.
