- SR-5R : Stereotaxic Instruments (for Rats)
- Specification

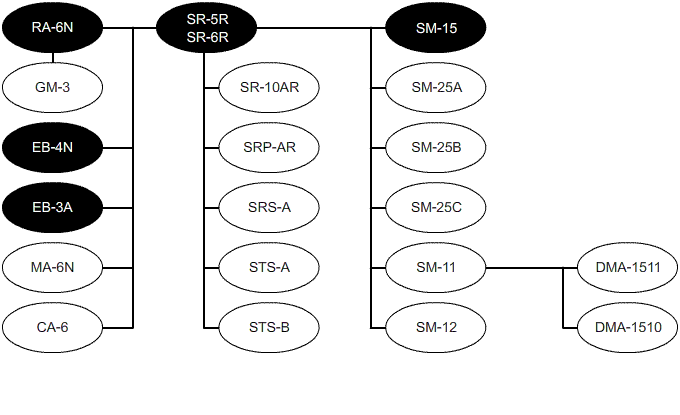

- System Diagram
- Associated Information
[ English / Japanese ]
This new stereotaxic instrument in our successful SR series is designed specifically for rats, and features various special functions to fix the head more firmly. Smooth manipulation of clamping actions with one hand is made possible by the auxiliary ear bar, and the operator can check that the external auditory canal is fixed correctly by feeling with the fingertips. The mouth and nose fixing clamp is designed thin and small, to match the dimensions of a small rat's mouth, allowing easy confirmation of teeth fixation. In addition, the instrument allows easy back/forward and up/down position adjustment. An 18.7mm AP frame bar is provided, to which many different types of accessories can be attached besides the attached micromanipulator SM-15. The SR-5R has one AP frame bar, while the SR-6R has two.
* Basic model (excluding SM-15) also available.
* When using these instruments with mice, use the separate MA-6N as well.
Narishige produces world standard 18.7mm square shape AP frame bar. Please be advised when mounting on your existent frames since our stereotaxic manipulators are tailored for 18.7mm AP frame bar.
| Accessories included | SM-15 Stereotaxic Micromanipulator EB-4N Auxiliary Ear Bar for Rats |
|---|---|
| Dimensions (base) | W400 × D300 × H110mm |
| Total weight | 8.75kg |
refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
