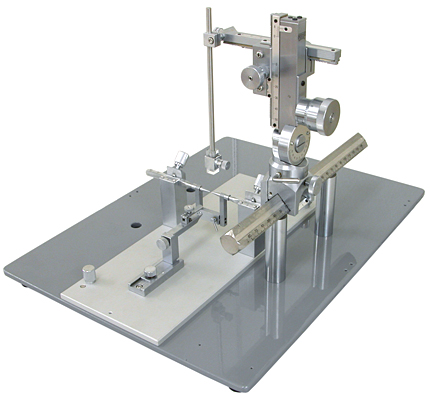

- SR-5M : Stereotaxic Instruments (for Mice)
- Specification
- System Diagram
- Associated Information
[ English / Japanese ]
Based on our long-established SR series, this stereotaxic instrument is designed specifically for mice and is equipped with various functions to fix the head more firmly. The auxiliary ear bar allows clamping actions to be smoothly manipulated with just one hand, letting the operator fix the external auditory canal and check the fixation firmness with the fingertips. The mouth and nose fixing clamp features a slim, compact design appropriate for the mouth of a small mouse, making it easy to confirm that the teeth are fixed firmly. In addition, the instrument allows easy back/forward and up/down position adjustment. An 18.7mm AP frame bar is provided, to which many different types of accessories can be attached besides the attached micromanipulator SM-15. The SR-5M has one AP frame bar, while the SR-6M has two.
* Basic model (excluding SM-15) also available.
* When using these instruments with rats, use the separate RA-6N as well.
Narishige produces world standard 18.7mm square shape AP frame bar. Please be advised when mounting on your existent frames since our stereotaxic manipulators are tailored for 18.7mm AP frame bar.
| Accessories included | SM-15 Stereotaxic Micromanipulator EB-5N Auxiliary Ear Bar for Mice |
|---|---|
| Dimensions (base) | W400 × D300 × H110mm |
| Total weight | 8.75kg |

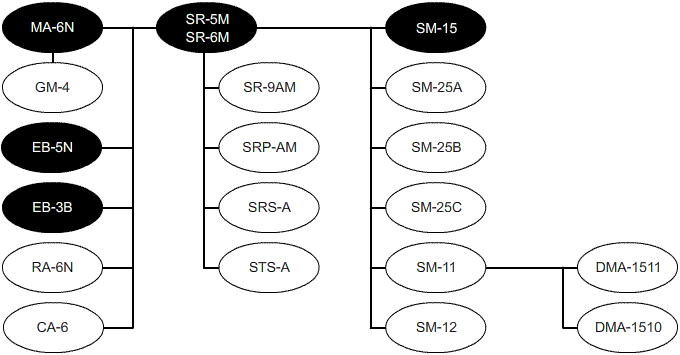

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
