SM-25B

Stereotaxic Manipulator (Thin-type, Coarse Drive)

Thin micromanipulator which can place several microelectrodes close together.

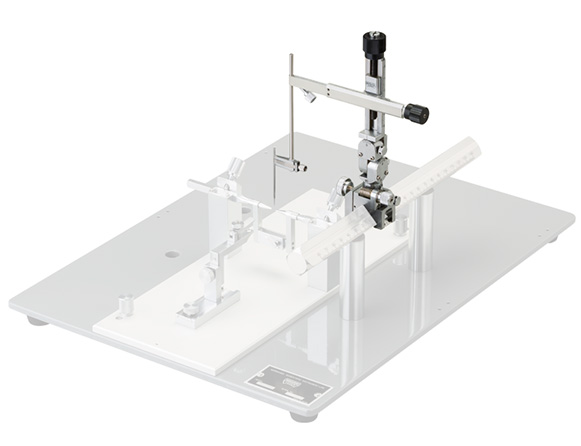

This micromanipulator is for multi-channel recording with stereotaxic instruments, and is designed to be as thin as possible without compromising its stability. A fixing holder is employed to fix the microelectrodes, in the same way as thin plates hold the microelectrodes. Rotation mechanisms are equipped for all three planes, and the horizontal plane can be rotated with the operating handle. This makes it possible to set the microelectrode angles and easily position the microelectrodes close together. There are three types (SM-25A, SM-25B and SM-25C) in this series, differentiated by the arrangement of their Z-axis movement unit. The SM-25A includes a fine movement unit for precise adjustments, while the SM-25B provides a simple coarse movement unit. The SM-25C features an oil hydraulic, remote controlled movement for stable, accurate operation. Users can select the appropriate type according to the work being undertaken.

SM-25B

Stereotaxic Manipulator (Thin-type, Coarse Drive)

Setting example

SM-25A + SM-25B + SM-25C Setting example

Specification

Accessory included		Dedicated Electrode Holder
Movement range	Coarse	X40mm, Z40mm
Movement range		Pivot angle adjustment
Dimensions/Weight		W125 × D28 × H157mm, 330g
