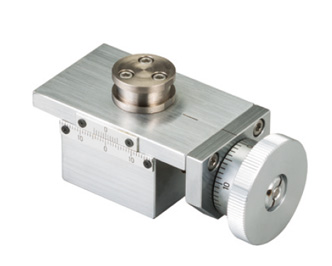

SM-15M

Substage

Adding Y-axis movement to the SM-15.

The standard SM-15 has X- and Z-axis movement units, but no Y-axis movement (i.e. the same direction as the AP frame bar). This one-axis fine movement unit can therefore be placed between the AP frame bar attachment point and the SM-15 body. This enables smoother, more precise adjustment than was possible by the former method of adjusting the Y-axis with the sliding AP frame bar.

SM-15M

NARISHIGE GROUP

SM-15M


Substage

Specification

Accessory included Allen Wrench
Movement range Fine 20mm
Full rotation of knob: 500µm
Minimum graduation: 10µm
Dimensions/Weight W81 × D38 × H39mm, 520g

Associated Information


Get Adobe Reader
To read PDF files, you need to have the Adobe Reader installed on your computer.
You can download it free of charge from : http://www.adobe.com/products/acrobat/readstep2.html

Specifications are subject to change without notice.
