SM-15B

Holder Attachment

For attachment of an injection holder.

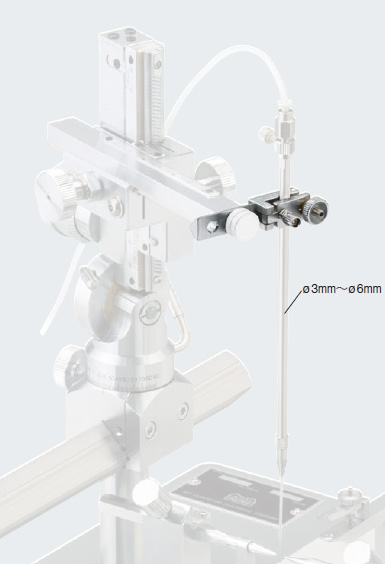

This attachment is used to mount a ø3 ~ 6 mm holder on the SM-15R/L. Provided with optimum design for quick attachment/replacement of an injector (IM-400).

SM-15B

Setting example

Setting example


Specification

Dimensions/Weight W21 × D54 × H11mm, 23g

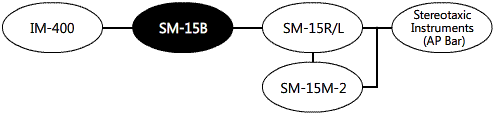

System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
