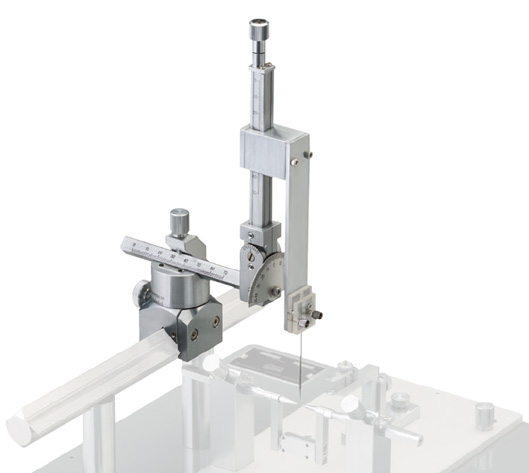

SM-12

Stereotaxic Manipulator

Simplest micromanipulator for stereotaxic instruments.

This is very simple, economical manipulator for stereotaxic instruments and can be mounted by various methods. A coarse movement unit is provided for the most important movement (vertical), while position adjustment for the others can be done with sliders. Rotation mechanisms are employed for the vertical and horizontal directions, enabling easy approach from any required tilting angle.

SM-12

SM-12A

Dedicated attachment SM-12A is required when attaching MO-10/MO-82.

* SM-12A sold separately

SM-12A
* SM-12A : ø8mm inner diameter

SM-12

Stereotaxic Manipulator

Specification

Accessories included		Screw Allen Wrench
Movement range	Coarse	Z65mm
Dimensions/Weight		W140 × D47 × H220mm, 900g

System Diagram

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors

Associated Information

How to read-off Vernier scale (PDF)
