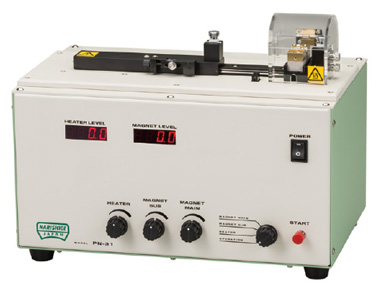

- PN-31 : Puller
- Specification
- Consumables
This puller uses a pulling method by which a glass capillary is fine-drawn using electromagnetic force. The long draw-out volume and employment of a strong electromagnetic solenoid enable the production of long, sharp microneedles. The pulling tension can be adjusted over a wide range, from weak tension for gradual pulling of the glass capillary at the beginning to strong tension for the single-stretch draw-out required to make a long, thin microneedle. The heater uses a platinum plate which heats up quickly, so pulling can begin immediately, with no time-lag. Digital values, with the maximum output of the electromagnet and heater represented as 100, are shown on the display, making it easier to mass-produce large quantities of identical microneedles of uniform quality.
* The PN-31 is designed specifically for pulling 1mm or 1.2mm O.D. borosilicate glass capillaries. For pulling capillaries of different O.D. or different materials, contact us or your local Narishige representative.
| Accessories included | Glass Capillary with filament Spare Heater Heater Reshaping Tool AC Power Cord Allen Wrench |
|---|---|
| Power source | AC100 (±5%), 50/60Hz AC120 (±5%), 50/60Hz AC220 (±5%), 50/60Hz AC240 (±5%), 50/60Hz |
| Power consumption | Approx. 250W |
| Heater level | 100 = heater voltage 1V |
| Magnet level | 100 = magnetic voltage 36V |
| Dimensions/Weight | W300 × D190 × H230mm, 7.7kg |
| Model | Product | Description |
|---|---|---|
| PN-3H | Heater for PN-3, PN-30, PN-31 | Platinum board 3mm (×3) |
| PN-30H | Heater for PN-30, PN-31 | Platinum board 6mm (×3) |
| GD-1 | Glass Capillary with filament | Outer diameter 1mm, 500pcs |
| GD-1.2 | Glass Capillary with filament | Outer diameter 1.2mm, 500pcs |
| GDC-1 | Glass Capillary with filament | Outer diameter 1mm, 200pcs |
| GDC-1.2 | Glass Capillary with filament | Outer diameter 1.2mm, 200pcs |
| G-1 | Glass Capillary | Outer diameter 1mm, 500pcs |
| G-1.2 | Glass Capillary | Outer diameter 1.2mm, 500pcs |
| GC-1 | Glass Capillary | Outer diameter 1mm, 200pcs |
| GC-1.2 | Glass Capillary | Outer diameter 1.2mm, 200pcs |
| G-100 | Thin-walled Glass Capillary | Outer diameter 1mm, 500pcs |
| G-1000 | Glass Rod | Outer diameter 1mm, 200pcs |
Specifications are subject to change without notice.
