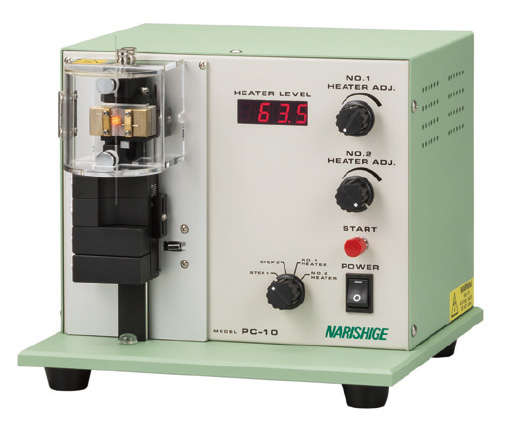

PC-10

Compliance with CE standards (Legend Symbols)

Puller

Vertical pull type with automated double mode for improved versatility.

The method used by this puller is to pull the glass capillary vertically, using the gravitational force of its own weight. For more versatility, two modes are provided: a single pull, which pulls at one stretch, and a double pull in which the setting is changed in mid-process. The PC-10 can therefore produce long, thin micropipettes for injection purposes, and firm microelectrodes for patch clamping. The change of setting in the double pull mode can be preset and then performed automatically, which represents a drastic saving of labor over conventional methods. Digital values, with the maximum output of the electromagnet and heater represented as 100, are shown on the display and the heater output is continually increased, making accurate mass production easier. This puller has several simple features to enhance ease of use, such as the employment of two weights (light and heavy) for tension adjustment.

PC-10

* The PC-10 is designed specifically for pulling 1mm~1.5mm O.D. borosilicate glass capillaries. For pulling capillaries of different O.D. or different materials, contact us or your local Narishige representative.



PC-10

Puller

Specification

Accessories included Glass Capillary
Spare Heater
AC Power Cord
Power source AC100 (±5%), 50/60Hz
AC120 (±5%), 50/60Hz
AC220 (±5%), 50/60Hz
AC240 (±5%), 50/60Hz
Power consumption Approx. 80W
Heater level 100 = heater voltage 2.5V
Weight Approx. 25g × 2
Approx. 100g × 2
Dimensions/Weight W205 × D190 × H185mm, 6.0kg

Consumables

Model Product Description
PC-10H Heater Wire heater (×5)
GD-1 Glass Capillary with Filament 500pcs
GDC-1 Glass Capillary with Filament 200pcs
G-1 Glass Capillary 500pcs
GC-1 Glass Capillary 200pcs
G-100 Thin-walled Glass Capillary 500pcs
G-1000 Glass Rod 200pcs
