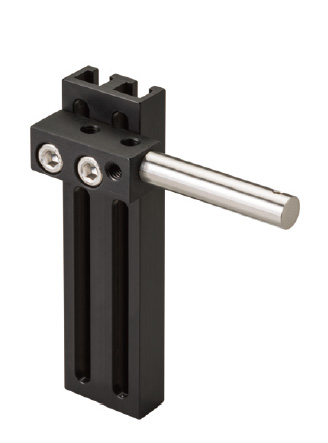

P-1A/B/C

Height Adjustment Plate

These fixing plates are used to fix bar attachment type manipulators to the adaptor. Since there are three types of bars (ø10mm, ø12mm and ø14mm), the mounting plate should be chosen according to the manipulator.

P-1A/B/C

Specification

Accessory included	Allen Wrench
Dimensions/Weight	W38 × D28 × H110mm, 130g

Bar

P-1A	ø10 × L50mm
P-1B	ø12 × L50mm
P-1C	ø14 × L50mm

Associated Information

Adaptor Pillar (PDF)

To read PDF files, you need to have the Adobe Reader installed on your computer.
You can download it free of charge from : http://www.adobe.com/products/acrobat/readstep2.html

Specifications are subject to change without notice.
