MX-2

Different models for left- and right-handed users (Legend Symbols)

Micromanipulator

Manipulator + tilting stand for more convenient patch clamping.

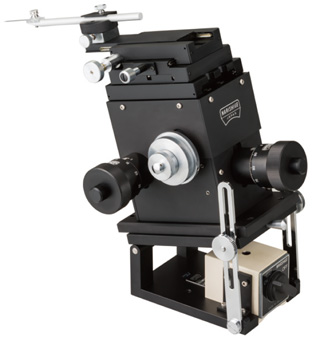

This model is the MX-1, with tilting stand TM-1 attached, for easier and more convenient patch clamping. Its unique structure prevents hand vibrations passing to the tip of the microelectrode, and obviates concerns about drifting caused by changes of temperature. The tilting stand offers outstanding performance stability, allowing the manipulator to be set at any angle for easier approach to the specimen, and enabling the manipulator to move horizontally as well as vertically in line with the microelectrode. The stand has a magnetic base, so (as long as an iron plate is used) installation is possible even when no screw holes are provided. A rotating mechanism is also included, making the exchange of microelectrodes easy.

MX-2



MX-2

Micromanipulator

Specification

Accessories included H-13 Electrode Holder
Spanner
Hex Wrench
Tension Adjustment Pin
Movement range Coarse X35mm, Y30mm
Fine X4mm, Y4mm
Full rotation of knob: 100µm
Minimum graduation: 1µm
Z-axis coaxial handle Coarse/fine movement range: 24mm
Full rotation of coarse handle: 18mm
Full rotation of fine handle: 200µm
Dimensions/Weight W210 × D180 × H265mm, 6.7kg

System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
