MWS-1A

Micromanipulator (One-axis Water Hydraulic System)

Ideal for patch clamping/blind patching using stereo microscopes.

Designed for patch clamping and blind patching with a stereo microscope at low magnification, this one-axis water hydraulic micromanipulator features a coarse manipulator with a 1:1 cartridge system. Since the MWS-1A uses this 1:1 cartridge system, it can travel a longer distance than the MWS-1B, allowing you to take advantage of this greater distance.

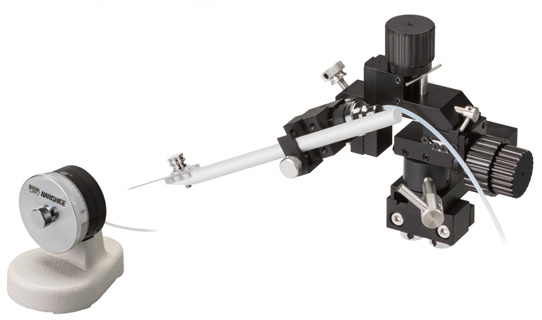

MWS-1A

* For attachment to the microscope, a suitable mounting adaptor is required (sold separately).

* AP-13-3/AP-14 patch clamp headstage holders can be attached (sold separately).

MWS-1A

(Legend Symbols)

Micromanipulator (One-axis Water Hydraulic System)

Specification

Accessories included		H-1 Electrode Holder Allen Wrench
Movement range	Coarse	X15mm, Y15mm, Z15mm
Movement range	Fine	10mm Full rotation of knob 250µm Minimum graduation 1µm
Dimensions/Weight	Control unit	W70 × D115 × H100mm, 1.15kg
Dimensions/Weight	Drive unit	W105 × D115 × H110mm, 370g

System Diagram

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
