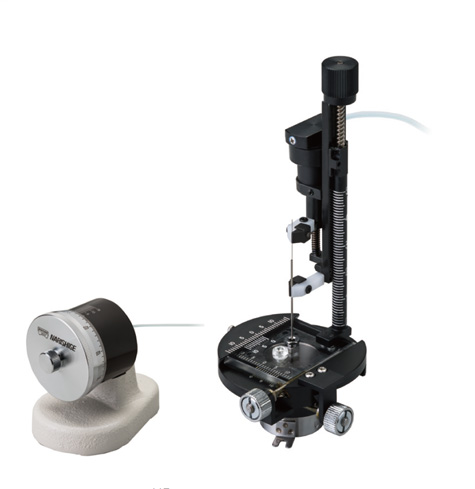

- MO-96 : Oil Hydraulic Micromanipulator
- Specification
- Associated Information
This chronic micromanipulator is used for middle sized animals, mainly monkeys. Electrodes can be inserted, without vibration, into deep areas by remote-controlled oil hydraulic drive. Attachment to the head is by the chamber method, so there is no concern that some slight movement will detach the electrode involuntarily. The MO-96 has an XY stage made of acrylic, which allows accurate positioning and observation inside animal subjects. The MO-96A is equipped with an open type chamber, which allows multiple measurements and the use of a grid.
| Accessories included | Chamber (MO-903E) Chamber Cap Stainless Steel Guide Tube (ø0.7 × 60mm) Threaded Round Bar Fixing Screws Spacer |
|
|---|---|---|
| Length of hydraulic tubing | 1.5m | |
| Movement range | Coarse | Z50mm |
| Fine | Z15mm Full rotation of knob: 500µm Minimum graduation: 2µm |
|
| Dimensions/Weight | Control unit | W70 × D115 × H100mm, 1.15kg |
| Drive unit | W63 × D63 × H112mm, 111g | |
To read PDF files, you need to have the Adobe Reader installed on your computer.
You can download it free of charge from : http://www.adobe.com/products/acrobat/readstep2.html
Specifications are subject to change without notice.
