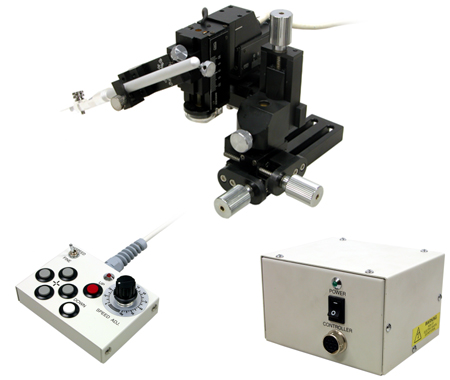

- MM-80 : Three-axis Motorized Micromanipulator
- Specifications
- System Diagram
The MM-80 has been developed to satisfy competing goals of "stability" and "compactness" that are essential for research work in electrophysiology. Generally, the higher the stability, the less compact it becomes. While maintaining stability, the MM-80 is designed to reduce the drive unit size to a minimum and deliver the performance to satisfy the requirements of researchers. The compact space-saving drive unit provides long working distance (20mm for fine travel and 30mm for coarse travel). In addition, the MM-80 incorporates "electrode holder fixing with angle gauge" that enables you to read the angle of a patch clamp headstage, which helps reduce stress during an experiment. "Rotation mechanism" has been also incorporated, allowing the motorized fine drive unit to rotate toward you to facilitate replacing the microelectrode or specimen.
* For attachment to the microscope, a suitable mounting adaptor is required (sold separately).
* The micromanipulator can be mounted directly on the isolation table.
* AP-14/AP-13-3 patch clamp headstage holders can be attached to the dedicated universal joint.
| Accessories included | H-1 Electrode Holder AC Power Cord Allen Wrench |
|
|---|---|---|
| Movement range | Coarse | X30mm, Y30mm, Z30mm |
| Fine | X20mm, Y20mm, Z20mm | |
| Speed | Minimun | Approx. 10µm/s (with DC motor drive, theoretical value) |
| Maximum | Approx. 150µm/s (with DC motor drive, theoretical value) | |
| Power source | AC100V (±5%), 50/60Hz AC120V (±5%), 50/60Hz AC220V (±5%), 50/60Hz AC240V (±5%), 50/60Hz |
|
| Power consumption | Approx. 15W | |
| Dimensions/Weight | Control unit | W100 × D75 × H50mm, 0.25kg |
| Drive unit | W145 × D140 × H135mm, 1.1kg | |
| Power supply | W125 × D105 × H85mm, 1.5kg | |
refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
Specifications are subject to change without notice.
