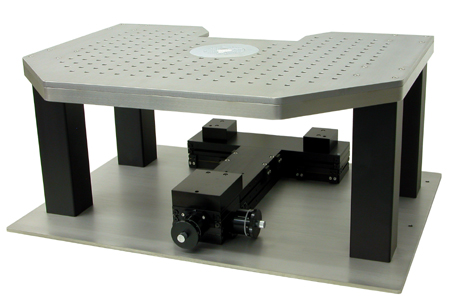

ITS-N/O/O2/Z/Z2/Z3/L

Isolation System


This system employs a stable isolation table on which the specimen and the micromanipulators can both be fixed independently of the microscope. With the microscope firmly fixed in position, the base can move in both X and Y planes. This allows the operator to change the observation position without moving either the specimen or the micromanipulators. The table is designed to accommodate any brand of microscope, so no adjustment mechanism is necessary. Vertical adjustment is easily performed by using spacers. The stage is supported by four large pillars whose outstanding rigidity and anti-vibration characteristics are further reinforced by added crossbeams. Holes provided in the wide, thick stainless steel stage allow the operator to set up several micromanipulators, in any position required, by means of magnets or screws. The X, Y stage incorporates several large bearings to ensure smooth, stable movement of even a heavy microscope. Even the heaviest microscopes can be moved smoothly and easily with the large handles, which are comfortable to operate with just one hand.

ITS-N/O/O2/Z/Z2/Z3/L


Setting Example

NARISHIGE GROUP

ITS-N/O/O2/Z/Z2/Z3/L


Isolation System

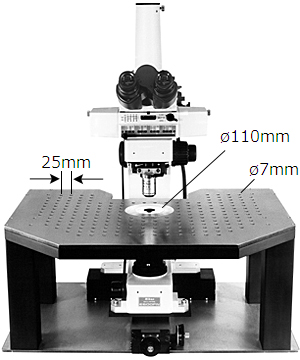

Setting example

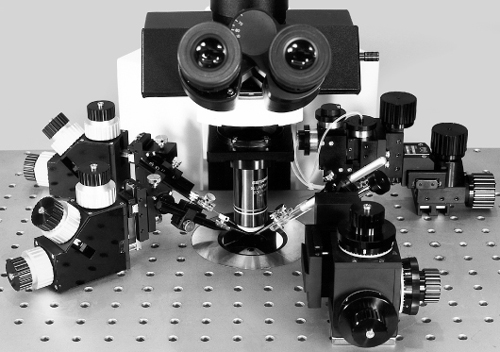

ITS + NMN-21 + NMN-25 setting example

ITS + GJ-12 + MHW-3 setting example
ITS + GJ-12 + NR-12 + NMN-A + NMN-21 setting example
NARISHIGE GROUP

ITS-N/O/O2/Z/Z2/Z3/L


Isolation System

Specification

Compatible microscopes ITS-N Nikon Upright Microscope for Patch Clamping / Physio Station E600FN
ITS-O Olympus fixed stage upright microscope / BX50WI
ITS-O2 Olympus fixed stage upright microscope / BX51WI / BX61WI
ITS-Z Carl Zeiss fixed stage upright microscope / Axioskop FS
ITS-Z2 Carl Zeiss fixed stage upright microscope / Axioskop 2FS
ITS-Z3 Carl Zeiss fixed stage upright microscope / Axio Examiner
ITS-L Leica fixed stage upright microscope / DMLFS
Accessory included Allen Wrench
Movement range Fine X22mm, Y22mm
Full rotation of knob 500µm
Minimum graduation 2µm
Dimensions/Weight W650 × D460 × H290mm, 41.7kg

Associated Information


Get Adobe Reader
To read PDF files, you need to have the Adobe Reader installed on your computer.
You can download it free of charge from : http://www.adobe.com/products/acrobat/readstep2.html

Specifications are subject to change without notice.
