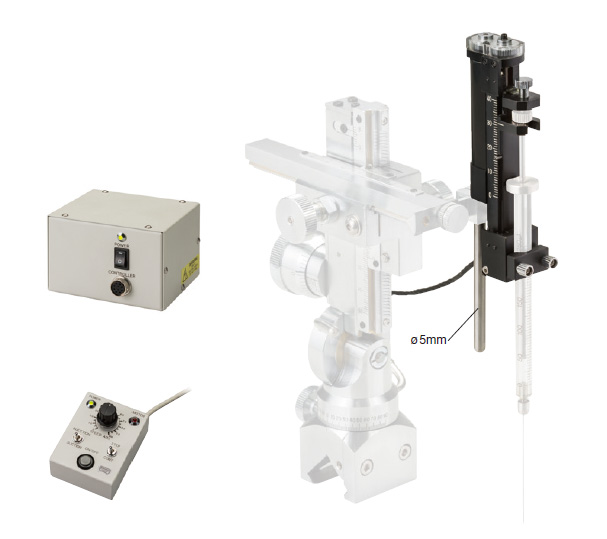

- IMS-10 : Motorized Microinjector
- Specification
This is a motorized microinjector primarily attached to a stereotaxic micromanipulator (SM-15). This microinjector allows continuous injection at a fixed speed, which is difficult to do with a manual microinjector, and it improves reproducibility when replicating the same experiment. In addition, the amount injected can easily be changed by replacing the syringe used (supported syringes: outer dia. ø7mm - ø10mm).
* Can be used with a manual manipulator such as MM-3.
* Syringes are required separately.
| Accessories included | AC Power Cord Knobs for Syringe Installation |
|
|---|---|---|
| Movement range | Fine | 40mm |
| Speed | Maximum | Approx. 180µm/s |
| Minimum | Approx. 24µm/s | |
| Power source | AC100 (±5%), 50/60Hz AC120 (±5%), 50/60Hz AC220 (±5%), 50/60Hz AC240 (±5%), 50/60Hz |
|
| Power consumption | 15W | |
| Dimensions/Weight | Drive unit | W20 × D30 × H130mm, 0.16kg |
| Control unit | W65 × D85 × H60mm, 0.3kg | |
| Power supply | W125 × D105 × H85mm 1.5kg | |
Specifications are subject to change without notice.
