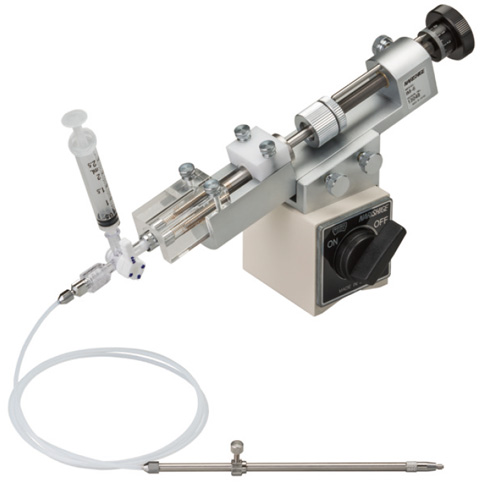

IM-6

Microinjector

Return of popular features promoting ease of use.

In response to user demand, the IM-6 marks the return of a former model which went out of production. The large, stable body makes operation extremely reliable, while the specifications allow precise control of injection and aspiration. Recommended for use on the injection side after it has been filled with oil.

IM-6

* Oil top-up kit IM-AS-2 (sold separately) is available for easy oil top-up and air bubble removal. Commercially available oil is required to fill up the oil.

* For details of attaching a commercially available syringe to this model, please contact your local narishige representative.

IM-6

Microinjector

Specification

Accessories included	IM-H1 Injection Holder Set Silicone Rubber Gasket IM-AS-2 Oil Top-up Kit Cleaning Rod
Movement range	Plunger 40mm Full rotation of knob 500µm
Control capacity	Total volumes 800µl Full rotation of knob approx. 10µl
Dimensions/Weight	W200 × D80 × H130mm, 2kg

* IM-H1 is a pre-assembled set consisting of HI-7, CT-1 and CI-1.

Consumables

Model	Product	Description
HI01PK01	Silicone Rubber Gasket	For 2.5mm (10pcs)

System Diagram

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
