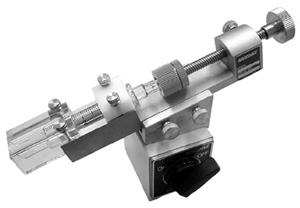

In response to user demand, the IM-5A marks the return of a former model which went out of production. The large, stable body makes operation extremely reliable. As well as controlling a large volume of liquid, it can be operated pneumatically, avoiding maintenance issues like topping up the oil, re-filling or removing air bubbles. Although this injector was typically used on the cell holding side, it can now be used on the injection side.
* For details of attaching a commercially available syringe to this model, please contact your local narishige representative.
| Accessories included | IM-H1 Injection Holder Set Silicone Rubber Gasket Glass Syringe 3ml Three-way Stop Cock Cleaning Rod |
|---|---|
| Movement range | Plunger 40mm Full rotation of knob approx. 6mm |
| Control capacity | Total volumes 3ml Full rotation of knob approx. 480µl |
| Dimensions/Weight | W200 × D80 × H130mm, 2kg |
* IM-H1 is a pre-assembled set consisting of HI-7, CT-1 and CI-1.
| Model | Product | Description |
|---|---|---|
| HI01PK01 | Silicone Rubber Gasket | For 2.5mm (10pcs) |
refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
