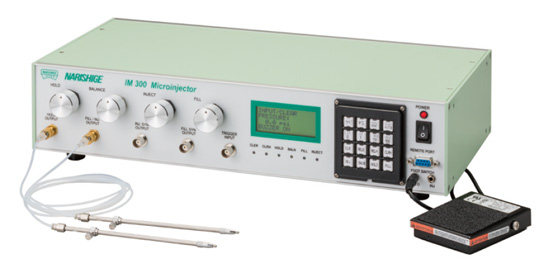

- IM-300 : Microinjector (Programmable)
- Specification
- Optional accessory
- Consumables
- Associated Information
[ English / Japanese ]
Setting the time and pressure in advance makes it possible to inject very small volumes of liquid with great precision. This model's numerous capabilities, including injection, filling up and holding, and varied functions such as foot switching, programming and air distribution, make it suitable for a wide variety of applications. Moreover, external control with the same action as the foot switch is possible via the input of TTL signals (negative logic).
* A compressor or cylinder (air, nitrogen, etc.) + regulator are required to use this device.
| Accessories included | Output Tube (with a tube connector, HI-7 Injection Holder) × 2 Input Hose (with a hose connector*) AC Power Cord Foot Switch Silicone Rubber Gasket Cleaning Rod |
|---|---|
| Input pressure | Approx. 60 - 100psi (= approx. 400 - 700kPa, = approx. 0.4 - 0.7MPa) |
| Injection pressure | Approx. 0.1 - 60psi (= approx. 0.7 - 400kPa, = approx. 0.0007 - 0.4MPa) |
| Balance pressure | Approx. 0 - 10psi (= approx. 0 - 70kPa, = approx. 0 - 0.07MPa) |
| Time settings | 10ms - 327.66s |
| Count settings | 1 - 255 |
| Power source | AC100 (±5%) - AC120 (±5%), 50/60Hz AC220 (±5%) - AC240 (±5%), 50/60Hz |
| Power consumption | Approx. 25W |
| Dimensions/Weight | W425 × D205 × H90mm, 3.7kg |
* The input hose has a tube fitting: "PC1/4-02" (PISCO). When connecting a regulator or a compressor, make appropriate connections in accordance with the tube fitting.
| Remote keypad for remote control |
| Model | Product | Description |
|---|---|---|
| HIO1PKO1 | Silicone Rubber Gasket | For 2.5mm (10 pcs) |
