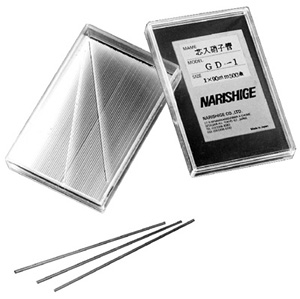

GD-1/1.2/1.5

Glass Capillary with Filament

Generally known as double tubing. Prewashed in an ultrasonic washing machine.

GD-1/1.2/1.5

Specification

Type	GD-1	GD-1.2	GD-1.5	GDC-1	GDC-1.2	GDC-1.5
Outer diameter	1mm	1.2mm	1.5mm	1mm	1.2mm	1.5mm
Inner diameter (approx.)	0.6mm	0.75mm	0.9mm	0.6mm	0.75mm	0.9mm
Length	90mm^*	90mm^*	90mm^*	90mm	90mm	90mm
Contents (pcs)	500	500	500	200	200	200
Material	Borosilicate

* A custom length between 70mm and 180mm is also available by special order. For details, please contact us.

To read PDF files, you need to have the Adobe Reader installed on your computer.
You can download it free of charge from : http://www.adobe.com/products/acrobat/readstep2.html

Specifications are subject to change without notice.
