EMM-3NV

Three-axis Motorized Micromanipulator

Non-compatible with CE marking; cannot be sold in Europe.

Advanced motorized micromanipulator with smooth, hydraulic-type movement. 40mm movement range provides superb workability.

While a hydraulic system permits smoothly operable fine movement, some users voice their concerns about drift occurrence caused by temperature changes. This motorized micromanipulator, designed for use not only by professionals but also by novice users, ensures stability and is resistant to drift occurrence.

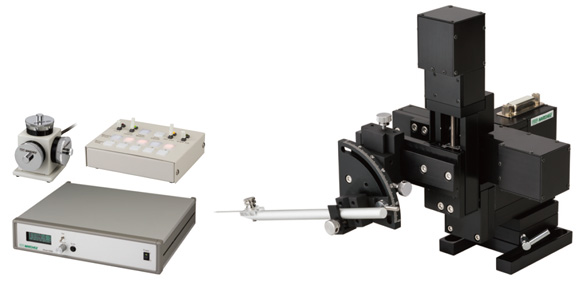

EMM-3NV

* AP-13-3 / AP-14A patch clamp headstage holders can be attached on the UST-3 solid universal joint, incorporated in the manipulator.


EMM-3NV


Three-axis Motorized Micromanipulator

EMM-3NV

40mm movement range provides superb workability

The wide 40mm movement range in all three (X, Y, Z) axes (coarse and fine combined), enabling work over a wider area. This is about 60% more than the conventional 25mm (1 inch) working area.

EMM-3NV

Smooth movement with excellent operability

Narishige's familiar vernier control knobs are employed. The control knobs are equivalent in size to those of a hydraulic unit, allowing the same operating feel as a hydraulic control unit. Easy to make the switch to the motorized control box.

EMM-3NV

Retract & Return/ Positional Memory (up to 5 positions) & Return/ T-axis drive

Useful functions available with this motorized control box include:

  • Allows the electrode to retract from and return to the object.
  • Permits the electrode to return to the position stored in memory (up to 5 positions).
  • Permits T-axis drive (the same direction as the electrode) without having to tilt the X-axis and Z-axis.
  • The compact control box permits placement in a desired position.
EMM-3NV

Defines electrode position more clearly and accurately

A fluorescent digital display provides increased visibility. The rack-mountable power supply unit is space-saving. Position readings in each X-, Y-, and Z-axis are calibrated in "µm" for easy and precise reading.



EMM-3NV


Three-axis Motorized Micromanipulator

Specifications

Accessories included Control Box-Control Unit Connecting Cable (3m)
Control Box-Drive Unit Connecting Cable (3m)
Power Cord
UST-3 Solid Universal Joint
Positioning Plate
Rack-mount Bracket
H-13 Electrode Holder
Hex Wrench
Working Distance X40mm, Y40mm, Z40mm
Drive System   Five-phase Stepping Motor
Minimum Controllable Step 0.02 / 0.06 / 0.1µm
Maximum Speed 3.6mm/s
Input Voltage AC100V ~ AC240V, 50/60 Hz
Dimensions/Weight Controller W107 × D107 × H130mm, 1.7kg
Drive unit W133 × D167 × H177mm, 1.25kg
Control unit W120 × D105 × H30mm, 250g
Control box W482 × D300 × H88mm, 5.3kg

* Non-compliant with CE Marking


System Diagram

System Diagram

System Diagram


Black Circle refers to the model itself with standard attachments
White Circle refers to attachable main accessories
Double Circle refers to types of mounting adaptors
