C-2

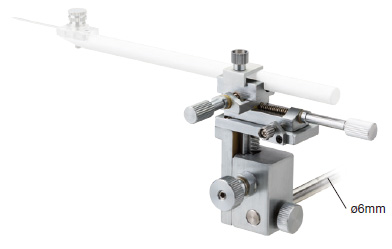

Adjustable Clamp

This clamp does not offer such precise control as a manipulator, but is equipped with a pivot mechanism for three-dimensional position adjustment. Its compact design enables attachment using a ø6mm bar and it can be used for various support purposes.

C-2

Specification

Accessories included		XY Control Handle ø6 × 120mm Threaded Bar Allen Wrench
Movement range	Coarse	Z24mm
Movement range	Fine	X15mm, Y6mm
Dimensions/Weight		W65 × D47 × H73mm, 190g

C-2

(Legend Symbols)

Adjustable Clamp

System Diagram

refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors

Specifications are subject to change without notice.
