- TSG-3 : Double Magnetic Stand
- Specification
- Spacer

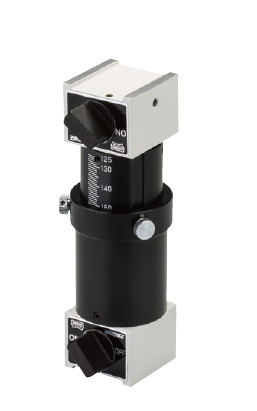

TSG-3 Double Magnetic Stand is provided with a calibrated vertical adjustment mechanism for easy setup. The magnetic stand enables a manipulator to be directly installed. An appropriately-sized stand for a combination of X-Y Base and stereo microscope.
* To raise the height of the TSG-2 Double Magnetic Stand, obtain Spacer (TSG-3H / TSG-3R) separately.
* Double Magnetic Stand / Comparison by size.
| Dimensions | W56 × D60 × H125 - 160mm |
|---|---|
| Weight | 980g |
| Magnetic force | 20kg/f |
| TSG-3H | TSG-3R | |
|---|---|---|
| Dimensions | ø40 × H50mm | ø40 × H100mm |
| Weight | 165g | 330g |
Specifications are subject to change without notice.
