- MO-972 : Oil Hydraulic Micromanipulator (with Stepping Motor)
- Specifications
- Associated Information
[ English / Japanese ]

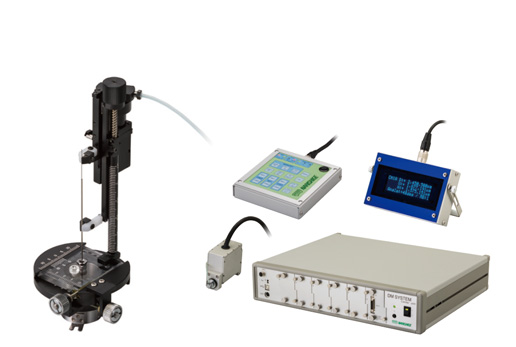

By adding the DM System to the MO-97, which is equipped with a chamber, X-Y stage and oil hydraulic drive, the driving volume can be controlled with even greater precision. This chronic micromanipulator is designed for use with middlesized animals, mainly monkeys. The wide (30mm) movement range and oil hydraulic drive allow electrodes to be inserted, without vibration, into deep areas by remote control. A guide tube (not available with conventional models) can be attached to help conduct the electrode to the required position with great accuracy. Despite the addition of these functions, this model is still light in weight and has a low center of gravity. Since it is attached to the head using the chamber method, detachment is easily performed but there is no concern that some slight movement will detach the electrode involuntarily. The X-Y stage is made of acrylic, which allows accurate positioning and observation inside animal subjects.
Based on the DM System, control boards are expandable thus up to three Drive Units can be controlled by one Control Box and one Keypad Controller.
Your existing 2-phase stepping motor driven manipulator (MO-81, SM-21, MO-971, etc.) can be connected by the use of a interface card (sold separately).
This function enables the user to set an arbitrary position as a reference point and the display is capable of showing the distance traveled from the set reference point. Position measurement system saves you the inconvenience of calculating the distance traveled, during and after each experiment.

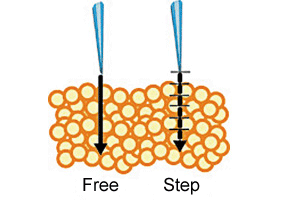

Three driving modes: Free Drive/Set Drive/Step Drive are user-selectable and the respective minimum movement units are user-definable.

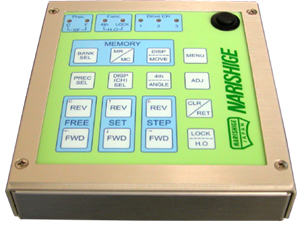

Easy-to-operate sheet keys are used for the Keypad Controller.
USB communications interface enables remote-control operation, permitting automatic drive to a specified position as well as interfacing to external hosts such as PCs through application programs.
* Communications protocol available upon request.
By downloading the firmware update through your PC, you will be able to utilize the most up-to-date features.
>> Download Service
| Accessories included | Chamber (MO-903E) Chamber Cap Stainless Steel Guide Tube (ø0.7 × 60mm) Threaded Round Bar Fixing Screws Spacer Keypad Cable Display Cable Extension Cable for Display AC Power Cord Rack Mount Brackets Bracket Mounting Screws Rubber Foot |
|
|---|---|---|
| Length of hydraulic tubing | 1.5m | |
| Drive source | 5-phase Stepping Motor | |
| Movement range | Coarse | Z50mm |
| Fine | X18mm Y18mm Z30mm (Motor-driven) |
|
| I/O port for communication | USB Type B | |
| Power source | AC100V - 240V, 50/60Hz | |
| Power consumption | 50W | |
| Dimensions/Weight | Drive Module | W63 × D63 × 121mm, 125g |
| Motor Drive | W97× D31× H56mm, approx. 0.25kg | |

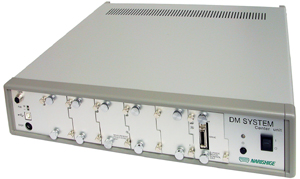

| Control Box | W430 × D350 × H80mm, 8.2kg | |
| Keypad (Controller) | W125 × D142 × H30mm, 0.28kg | |
| Display | W140 × D85 × H35mm, 0.26kg | |
