The micromanipulator can be controlled remotely by pressing keys on the keypad. A given position can easily be set and logged as a reference point, and the distance from a set reference point can be displayed. Calculating coordinates automatically using positional measurement eliminates the hassle of calculating the distance traveled during and after an experiment. The advantages of motorized control are put to full use in the micromanipulator's vast array of features and support for upgrades, allowing it to be used effectively in a variety of experiments.
* The DMA-1510 is a simplified model without a digital sensor equipped on the drive unit of the DMA-1511.

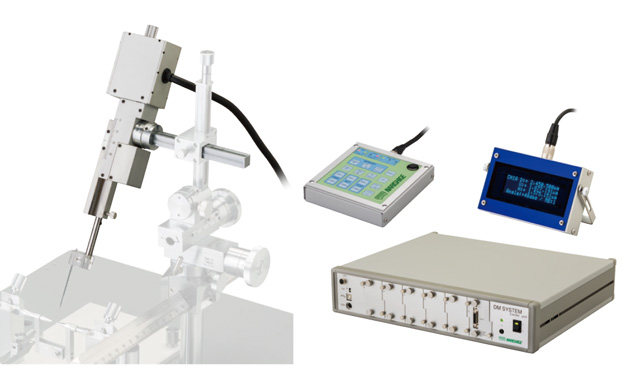

DMA-1510 with SM-11 (sold separately) setting example
* DMA-1510/DMA-1511 cannot be mounted on the SM-15.
If you are looking for a similar model for SM-15, please contact us for details.
Unlike conventional motorized manipulators, the distance actually traveled and the coordinate are shown on the display, whereby precisely controlled drive can be achieved.
This function enables the user to set an arbitrary position as a reference point and the display is capable of showing the distance traveled from the reference point set. Position measurement system saves you the inconvenience of calculating the distance traveled, during and after each experiment.
An arbitrary distance is configurable in both step drive and set drive. The use of the step drive allows you to advance the microelectrode while checking cells, one by one.
| Free Drive | Distance Set Drive |
|---|---|
| This mode allows step/set movement to the upper or lower direction while the operation key is pressed. In confirming the position, this mode is useful for advancing an electrode close to the sample.
|
In this mode, a movement distance is set. An electrode moves in an upper or lower direction by a configured distance each time the operation key is pressed.
|
| Step Drive | Coordinate Set Drive |
| This mode repeats a certain distance of movement and interval in turn while the operation key is pressed. In confirming the position, this mode is used for carefully advancing an electrode.
|
By determining absolute target coordinates based on a set reference point and traveling to those coordinates, the micromanipulator can move the end of a microelectrode to initially set target coordinates regardless of the microelectrode's starting position. When target coordinates (+Xµm) are set based on a reference point, the microelectrode travels to the set +Xµm coordinates from its current coordinates (a).
|
| Accessories included | Keypad Cable Display Cable Extension Cable for Display AC Power Cord Rack Mount Brackets Bracket Mounting Screws Rubber Foot Dedicated Electrode Holder |
|
|---|---|---|
| Drive source | 5-phase Stepping Motor | |
| Movement range | 35mm | |
| Minimum increment | Coarse | 0.5µm |
| Fine | 0.05µm | |
| Super fine | 0.005µm | |
| I/O port for communication | USB Type B | |
| Power source | AC100V - 240V, 50/60Hz | |
| Power consumption | 50W | |
| Dimensions/Weight | Drive Module | W145 × D35 × H195mm, 0.8kg |
| Control Box | W430 × D350 × H80mm, 8.2kg | |
| Keypad (Controller) | W125 × D142 × H30mm, 0.28kg | |
| Display | W140 × D85 × H35mm, 0.26kg | |
refers to the model itself with standard attachments
refers to attachable main accessories
refers to types of mounting adaptors
Specifications are subject to change without notice.
